Sprinklers for greenhouses and homegrowns
|
|
|
|
SPRINKLERS WITH EXTREMELY FINE MIST FOR GREENHOUSES PROBABLY THE MOST UNIFORM SPRINKLER IN THE WORLD FOR 8m diameter GREENHOUSES |
HOLE Ø |
ARTICLE |
PRESSION |
Atm 2 l/min |
Atm 3 l/min |
|
RG2E Evolution ART.0803
360° rotating sprinkler for very fine water spray systems, featured 15° inclined jet, 1/2" female gas connection

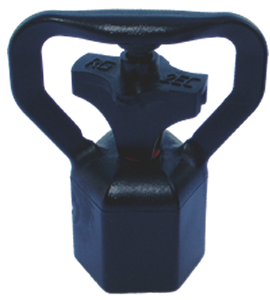

RG2EC Evolution ART.0805
360° rotating sprinkler for very fine water spray, upside-down function for greenhouses, 1/2" female gas connection |
|
GREEN NOZZLE 8m radius |
2 |
0807 |
2,8 |
3,6 |
|
RED NOZZLE 8-9m radius |
2,5 |
0808 |
4,3 |
5,5 |
|
ORANGE NOZZLE 9-10m radius |
3 |
0809 |
6,5 |
8,5 |
RG2 SPRINKLERS |
PICTURE |
ART. |
DESCRIPTION
|
ATM |
l / min |
RANGE m |
|
0401 |
TYPE-RG2 360°
Static nylon sprinkler, with extremely fine water misting suitable for garden systems.
8m irrigated diameter
1/2" female gas fitting
|
2 |
20 |
4 |
3 |
24 |
4 |
|
0402 |
TYPE-RG2 180°
Static nylon sprinkler, with extremely fine water misting suitable for garden systems.
8 x 4m irrigated
1/2" female gas fitting
|
2 |
10 |
4 |
3 |
12 |
4 |
|
0406 |
TYPE-RG2 180° ridotto
Static nylon sprinkler, with extremely fine water misting suitable for garden systems.
With shoerter length and range, 2,5 x 5m irrigated
1/2" female gas fitting
|
1 |
4,5 |
2,5 |
2 |
5,5 |
2,5 |
|
0403 |
TYPE-RG2 90°
Static nylon sprinkler, with extremely fine water misting suitable for garden systems.
4m irrigated radius
1/2" female gas fitting
|
2 |
6 |
4 |
3 |
8 |
4 |
|
0407 |
TYPE-RG2 90° reduced
Static nylon sprinkler, with extremely fine water misting suitable for garden systems.
With shorter length and range, 2,5m irrigated radius
1/2" female gas fitting
|
1 |
4 |
2,5 |
2 |
5 |
2,5 |
|
0404 |
TYPE-RG2 RECTANGULAR
Static rectangular nylon sprinkler, with extremely fine water misting suitable for garden systems.
1x8m irrigated surface
1/2" female gas fitting
|
2 |
6 |
4 |
3 |
8,5 |
4 |
|
0405 |
TYPE-RG2 RECTANGULAR HALF RANGE
Static rectangular half range nylon sprinkler, with extremely fine water misting suitable for garden systems.
0,9x5m irrigated surface
1/2" female gas fitting
|
2 |
3,5 |
5 |
3 |
4 |
5 |
|
0801
0802
|
TYPE-RG2R
360° static sprinkler in nylon, with extremely fine water misting suitable for greenhouses systems. It may be used: on aerial tubes, monted upside-down especially suitable for delicated cultures. 8m irrigated diameter. Recomended distance between sprinklers: 3,5m
TYPE-RG2R with ANTI-DRIP valve |
3 |
25 |
4 |
4 |
30 |
4 |
|
0701 |
TYPE-RG3
360° static sprinkler in nylon, especially suitable for terrains and crops recuiring large watering. May be mounted either straight or upside-down.
11m diameter irrigated
|
3 |
47 |
5,5 |
4 |
55 |
6 |
|
